Information & Records

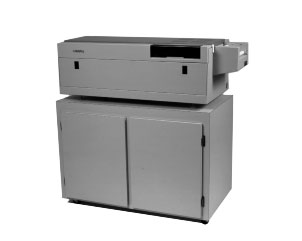

Associates provides processors from Maple Development; versatile
development solutions featuring all format capability, 40 seconds to
finished film, multiple format, simultaneous processing, daylight
loading, and more.
Features
 All format capability in
one machine
Process multiple formats
simultaneously
40 seconds to finished
film
Self threading
Daylight loading
Archival quality output
Modular construction
Auto-Fill chemistry
replenishment available
Variable speed and
temperature controls
Environmentally safe,
automatic chemical loading and disposal
Multiple enhancement
options
Specifications
Number of solution tanks: 4
Reversible Take-up Standard
Plumbing Optional
Water Consumption 3 LPM / 0.75 GPM
Drain Type Gravity
Chemical Replenishment System Optional, Not required on "E" models
Solution: Autofill/Replenishment Standard on "E" models
Power Requirements: 120 V, 50/60 Hz, 8 Amp
Power Requirements: 220/240 V, 50/60 Hz, 8 Amp
Processor Dimensions: 41 cm x 41 cm x 109 cm / 16 in x 16 in x 43 in
Shipping Dimensions: 61 cm x 67 cm x 135 cm / 24 in x 26 in 53 in
Shipping Weight: 54 Kg / 120 lbs
Simultaneous Roll or Cartridge Capacities:
3 X 16 mm, or 2 X 35 mm, or 1 X 105 mm
Maximum Film Width: 127 mm / 5 in
Cut Fiche Capability: Model 3000 and 3000E
Transport Speed: 0 - 2.5 MPM / 0 - 8 FPM
Typical Processing Time: 100' x 16 mm Models 3000 and 3000E - 40 min
Typical Processing Time: 100' x 16 mm Models 3500 and 3500E - 20 min
Solution Temperature: 26° C - 49° C / 80° F - 120° F
Dryer Temperature Ambient - 54° C / 130°F
Warm-up Time: 10-12 min.
Let Information & Records Associates show you how the Maple 3000
Series can solve your processing needs.
