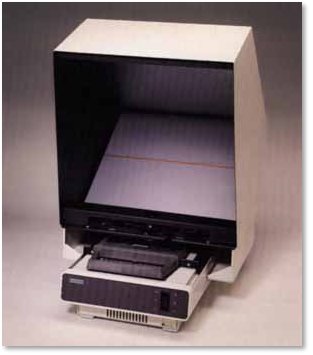

This front projection reader
displays both COM and source document images at a full size, 100%
blow back with the screen at a comfortable angle, ambient light is
blocked from the screen to enhance the sharp, easy-to read image.
The 4601-06 reader features an optional dual-lens system,
accommodates all formats of COM fiche & jacketed film. This
energy efficient reader has a convenient removable power drawer.
Specifications
Dimensions: W371mm x H542mm
x D489mm (14.6" x 21.3" x 19.2")
Weight: 10 kilograms (22 pounds)
Screen: W360mm x H282mm (14" x 11"), front
projection
Carrier: Standard - 105mm x 152mm (4" x 6")
self-opening
Magnification: 21x, 24x, 32x, 36x, 42x, 48x, 54x, and
optional 72x
Dual Switchable Lenses: Optional, any combination of above
Input: Microfiche, Jackets, and Aperture Cards
Indexing: Interchangeable grids
Focus: Front-mounted, precision control
Lamp: Dual Intensity 13.8V, 30W
Electrical: Standard - 120V, 50/60Hz. Optional - 220/240V,
50/60Hz for international application. UL and International Safety
Approvals
Construction: High impact plastic/metal
Warranty: 1 year limited warranty
Options and Accessories
Options
- Dual lens system with precise
lever action for easy changing of lenses
- Transparent yellow line centered
on screen
- 12V DC power cord and vehicle
mount
Accessories
- Blue acrylic screen enhance
- Dust cover
- Cleaning kit
- Turntable
- Fiche storage
Features
- Removable power drawer for easy
maintenance
- Large, angled screen
- Precision optical system for
high resolution
- Precision carrier for smooth
operation
Specification, product appearance
and statements are subject to change.
Contact
Information & Records Associates for more information.
