State-of-the-art technology
combined with ergonomic design and contemporary appearance create a

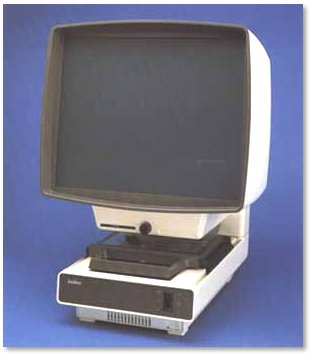

rear-projection reader that is easy on the eyes. The 4601-03
(14" x 11" screen) Aperture Card Reader accommodates
aperture cards, COM, fiche and jacketed source document information
and features a dual lens system to give you more viewing
versatility. The removable power drawer also gives you the advantage
of no down-time.
Specifications
Dimensions: W400mm x H530mm
x D495mm (15.7" x 20.9" x 19.5")
Weight: 6.8 kilograms (15 pounds)
Screen: W360mm x H282mm (14.2" x 11.1"), rear
projection, non-glare blue, gray or green
Carrier: Standard - 105mm x 187mm (4" x 7 3/8")
self-opening, Optional - 105mm x 152mm (4" x 6")
self-opening or 105mm x 152mm dual (4" x 6") self-opening.
Magnification: Dual lens system Standard with 10x and 21x.
Optional - 24x, 32x, 37x, 42x, 48x, 54x, and optional 72x as
alternates to 21x.
Input: Microfiche, Jackets and Aperture Cards
Indexing: Interchangeable grids
Focus: Front-mounted, precision control
Lamp: Dual Intensity 13.8V, 50W
Electrical: Standard - 120V, 50/60Hz, Optional - 220/240V,
50/60Hz for international application or 12V D.C. power cord and
vehicle mount. UL, CSA and International Safety Approvals
Construction: High impact plastic
Warranty: 5 year limited warranty
Options and Accessories
Options
- 12V DC power cord and vehicle
mount
Accessories
- Dust cover
- Cleaning kit
- Turntable
- Extension hood
Features
- Removable power drawer for easy
maintenance
- Dual lens system with precise
lever action for easy changing of lenses
- Sure track, easy-glide 4" x
7-3/8" carrier
- Front mounted focus
- Dual intensity lamp for long
life
- Lightweight - the lightest
aperture card reader available
- Superior sharp image
- Removable screen, mounted on a
bezel for easy cleaning and lens changing
Specification, product appearance
and statements are subject to change.
