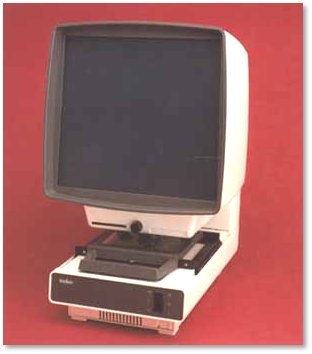

Ease of use and maintenance are
designed into this rear projection, full-size source document reader
which accommodates all formats of COM, microfiche, jacketed film and
aperture cards. Its modern design and light weight make it the ideal
addition to any office and it can he adapted to be mounted in a
vehicle so your information is always at your fingertips.
Specifications
Dimensions: W355mm x H530mm
x D495mm (14.0" x 20.9" x 19.5")
Weight: 6.8 kilograms (15 pounds)
Screen: W313mm x H282mm (12.3" x 11.1"), rear
projection, non-glare blue, gray or green
Carrier: Standard - 105mm x 152mm (4" x 6")
self-opening. Optional - 105mm x 187mm (4" x 7 3/8")
self-opening or 105mm x 152mm dual (4" x 6") self-opening
Magnification: 21x, 24x, 32x, 36x, 42x, 48x, 54x, and
optional 72x
Dual Switchable Lenses: Optional, any combination of above
Indexing: Interchangeable grids
Focus: Front-mounted, precision control
Input: Aperture Cards, Microfiche and Jackets
Lamp: Dual Intensity 13.8V, 30W
Electrical: Standard - 120V, 50/60Hz, Optional - 220/240V,
50/60Hz for international application. UL, CSA and International
Safety Approvals
Construction: High impact plastic
Warranty: 5 year limited warranty
Options and Accessories
Options
- Dual lens system with precise
lever action for easy changing of lenses
- Scribe line centered on screen,
black or transparent yellow
- 12V DC power cord and vehicle
mount
Accessories
- Movable line follower
- Dust cover
- Cleaning kit
- Turntable
- Fiche storage
- Extension hood
Features
- Removable power drawer for easy
maintenance
- Large, angled screen
- Precision optical system for
high resolution
- Precision carrier for smooth
operation
- Removable screen, mounted on a
bezel for easy cleaning and lens changing
Specification, product appearance
and statements are subject to change.
