Indus 4601-01 J Reader

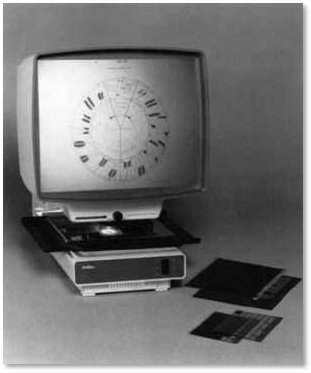

The Model 4601-01J is a Desktop Microfiche/Jacket Reader for reading of Jumbo Microfiche 18cm x 24cm (7" x 9") or oversize 5" x 8" jacketed film. The unit offers a 14" x 11" rear projection screen for viewing up to two pages of information. Images on the screen at 24x through 48x project a full size, sharp image whether they are Source or COM generated.

Specifications:

Dimensions: W15.7" x H20.9" x D19.5" (W400mm x H530mm x D495mm)
Weight: 19 pounds (8.6 kilograms)
Screen: W14.2" x H11.1" (360mm x 282mm)
Carrier: Standard - 7" x 9.5" (18cm x 24cm)
Magnification: 21x, 24x, 32x, 36x, 42x, 48x, 54x, and optional 72x
Dual Switchable Lenses: Optional, any combination of above
Input: Jumbo Fiche, Jackets, and Aperture Cards
Indexing: Interchangeable grids
Focus: Front-mounted, precision control
Lamp: Dual Intensify 13.8V, 30W
Electrical: Standard - 120V, 50/60Hz. Optional - 220/240V, 50/60Hz for international application
Construction: High Impact Plastic and Steel
Warranty: 5 year Limited Warranty

Options:

Dual lens system with precise lever action for easy changing of lenses
Scribe line centered on screen, black or transparent yellow
12V DC power cord and vehicle mount
RF 1635 Manual Roll Film Attachment

Accessories:

Dust cover
Cleaning kit
Turntable
Fiche storage
Extension hood

Features:

Removable power drawer for easy maintenance
Large, angled screen
Precision optical system for high resolution
Precision carrier for smooth operation
Removable screen, mounted on a bezel for easy cleaning and lens changing

Specification, product appearance and statements are subject to change.
