Indus 4601-01 Reader

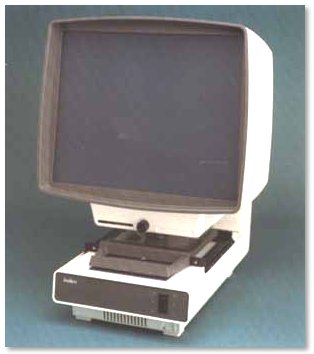

This COM reader, with a full 100% blow-back, combines contemporary design, appearance and state-of-the-art technology to give you a high resolution, easy-to-read image. The 4601-01 reader features an optional dual lens system and accommodates all formats including COM fiche and jacketed film. Convenience and easy care are featured in this reader with its easily changed lenses, removable screen with bezel, power drawer, and light weight.

Specifications

Dimensions: W400mm x H530mm x D495mm (15.7" x 20.9" x 19.5")
Weight: 6.8 kilograms (15 pounds)
Screen: W360mm x H282mm (14.2" x 11.1"), rear projection, non-glare blue, gray or green
Carrier: Standard - 105mm x 152mm (4" x 6") self-opening, Optional - 105mm x 187mm (4" x 7 3/8") self-opening or 105mm x 152mm dual (4" x 6") self-opening
Magnification: 21x, 24x, 32x, 36x, 42x, 48x, 54x, and optional 72x
Dual Switchable Lenses: Optional, any combination of above
Input: Microfiche, Jackets, and Aperture Cards
Indexing: Interchangeable grids
Focus: Front-mounted, precision control
Lamp: Dual Intensify 13.8V, 30W
Electrical: Standard - 120V. 50/60Hz, Optional - 220/240V, 50/60Hz for international application. UL, CSA and International Safety Approvals
Construction: High impact plastic
Warranty: 5 year limited warranty

Options and Accessories

Options

  • Dual lens system with precise lever action for easy changing of lenses
  • Scribe line centered on screen, black or transparent yellow
  • 12V DC power cord and vehicle mount

Accessories

  • Movable line follower
  • Dust cover
  • Cleaning kit
  • Turntable
  • Fiche Storage
  • Extension hood

Features

  • Removable power drawer for easy maintenance
  • Large, angled screen
  • Precision optical system for high resolution
  • Precision carrier for smooth operation
  • Removable screen, mounted on a bezel for easy cleaning and lens changing

Specification, product appearance and statements are subject to change.

Contact Information & Records Associates for more information.
